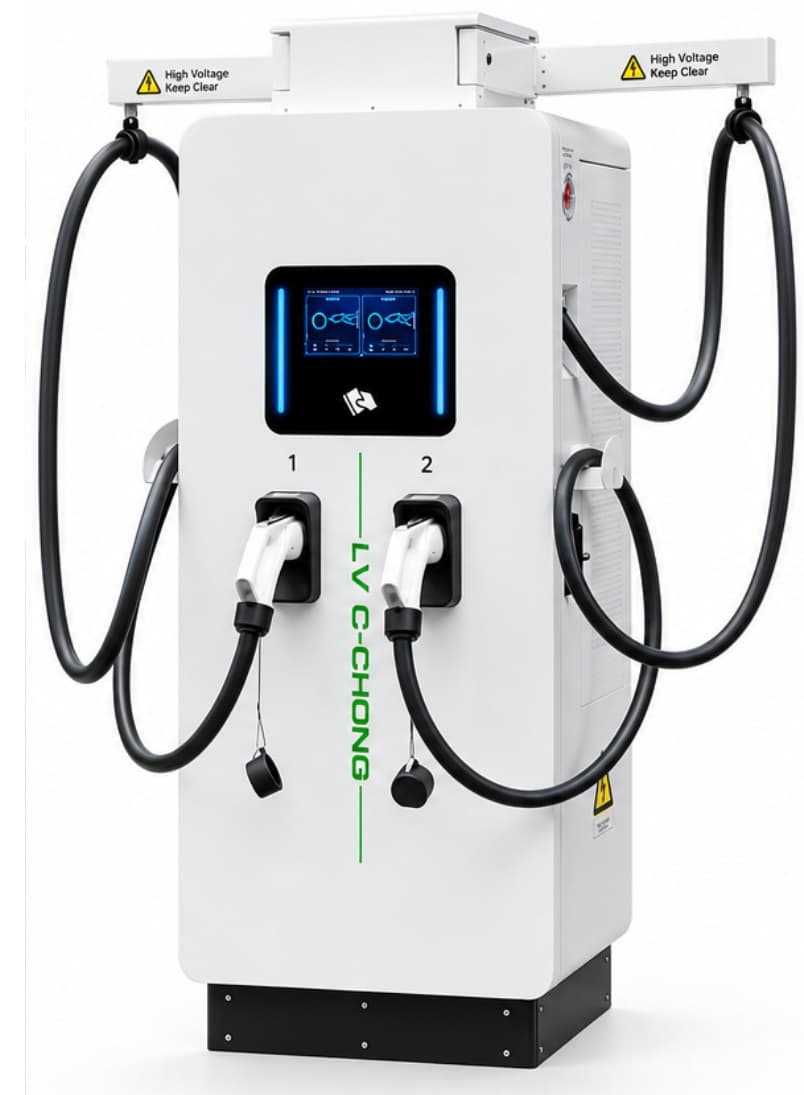

2ZD120-3 120 kW Dual-Gun DC Charger

Freestanding 120 kW dual-gun DC charger with a 10.1-inch touch screen.

The 2ZD120-3 is a floor-standing DC charger rated at 120 kW. It accepts three-phase 380 V input and delivers 200–1000 V DC, with up to 400 A across two guns or 250 A on a single gun. The cabinet is IP54.

Quote

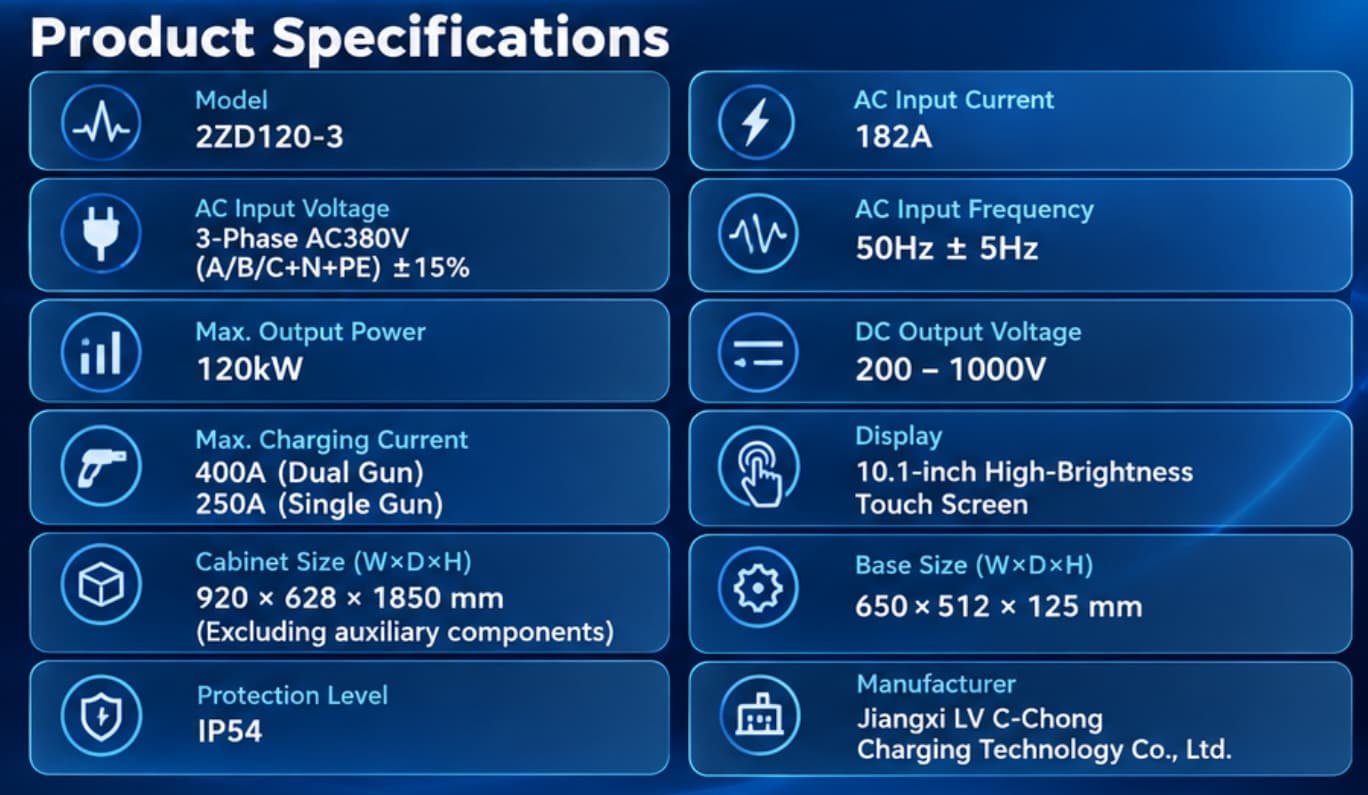

Model

2ZD120-3

Max output power

120 kW

DC output voltage

200–1000 V

Max charging current

400 A dual gun; 250 A single gun

AC input

3-phase 380 V, 50 Hz ±5 Hz

Display

10.1-inch touch screen

Cabinet size

920 × 628 × 1850 mm

Protection

IP54
