BMG800 Industrial Edge Computing Gateway

7-inch HMI gateway with field I/O, LAN/WAN, 4G/Wi-Fi options, and local edge processing.

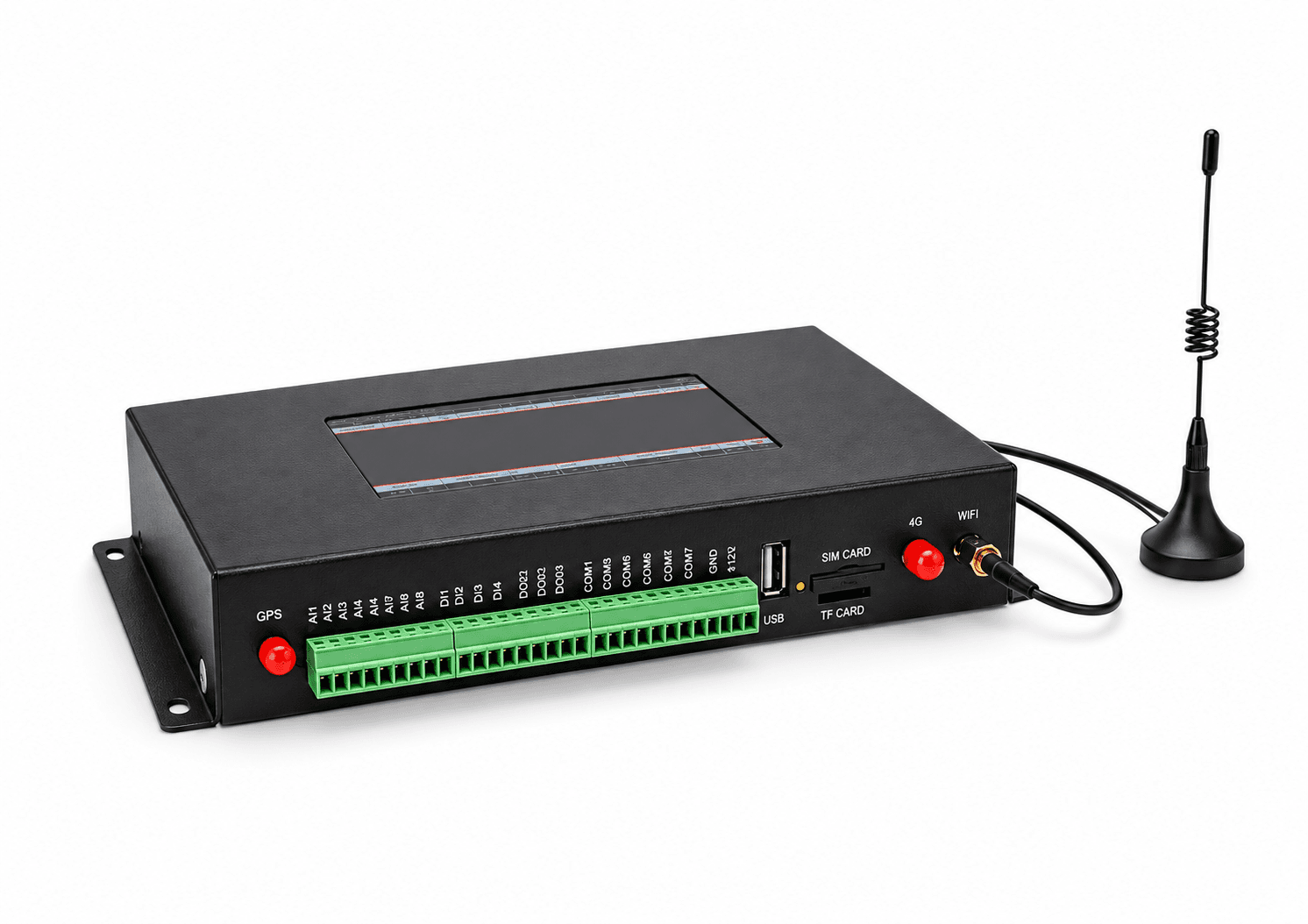

The BMG800 is an industrial edge-computing gateway with an integrated 7-inch display, field terminals, Ethernet, cellular, and optional GPS/Wi-Fi. It collects equipment data, processes it locally, and can forward selected information to up to 12 management centers over wired or wireless links.

Quote

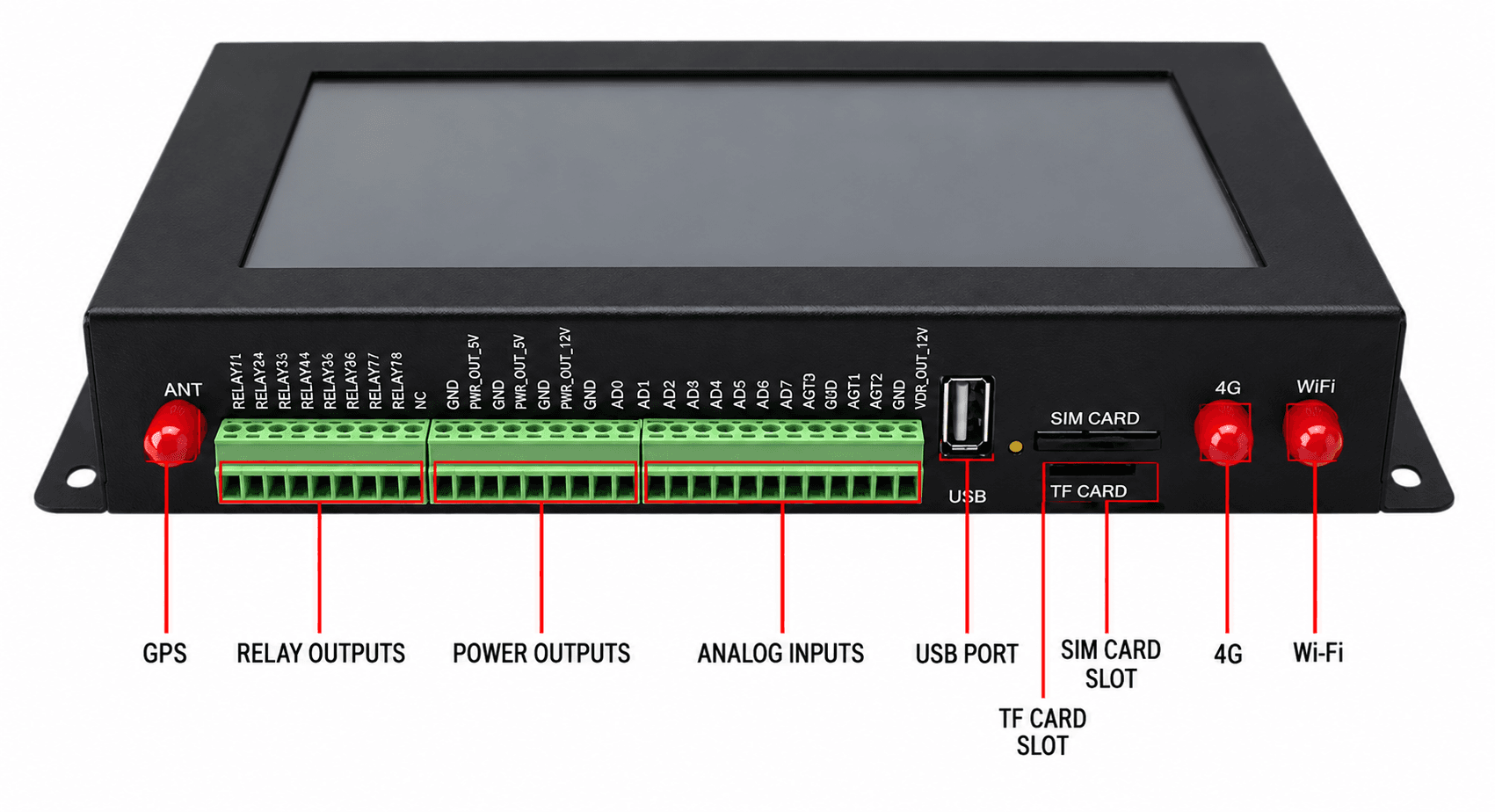

Display

Integrated 7-inch HMI

Networking

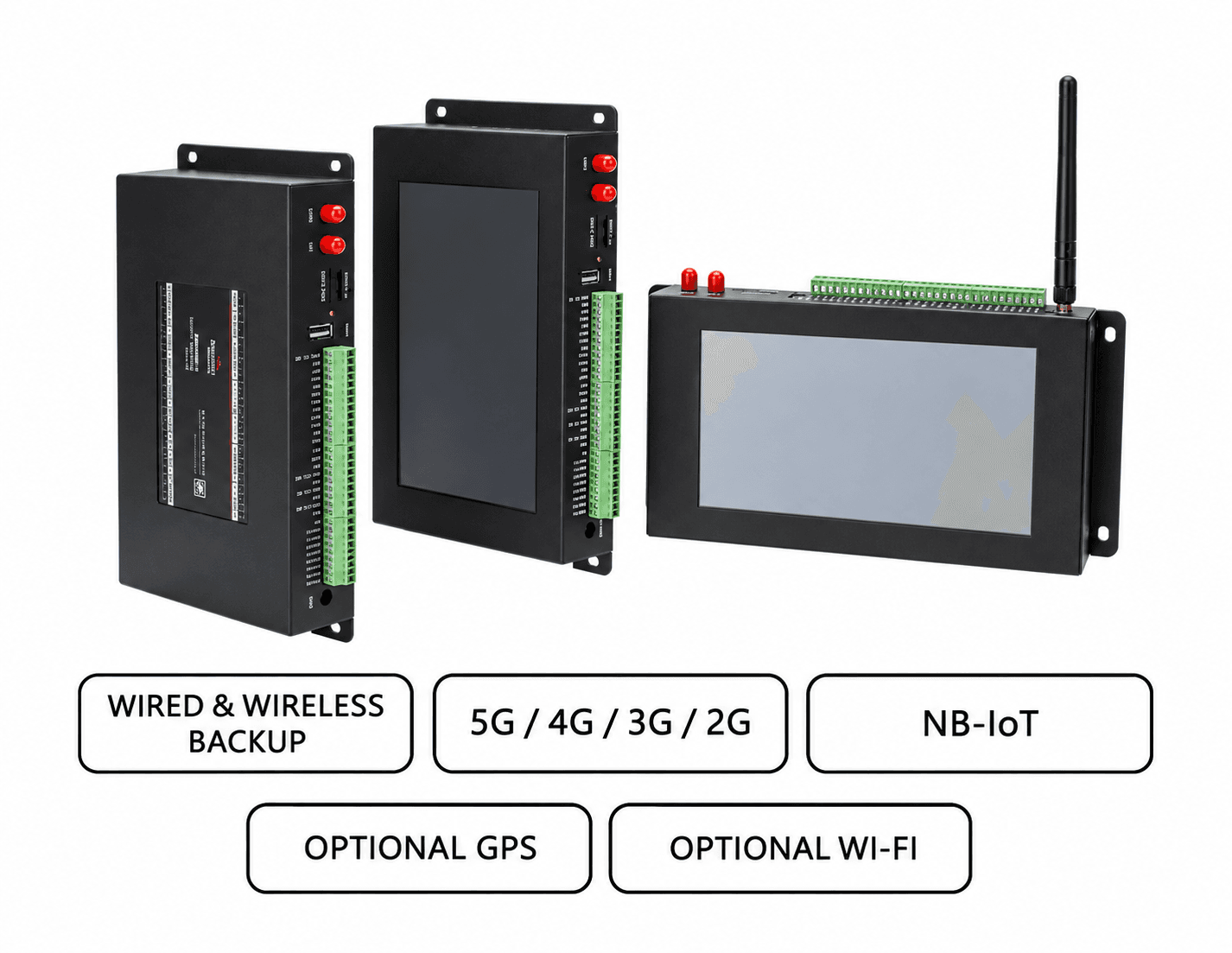

LAN / WAN Ethernet; 4G / 5G / NB-IoT / Wi-Fi options

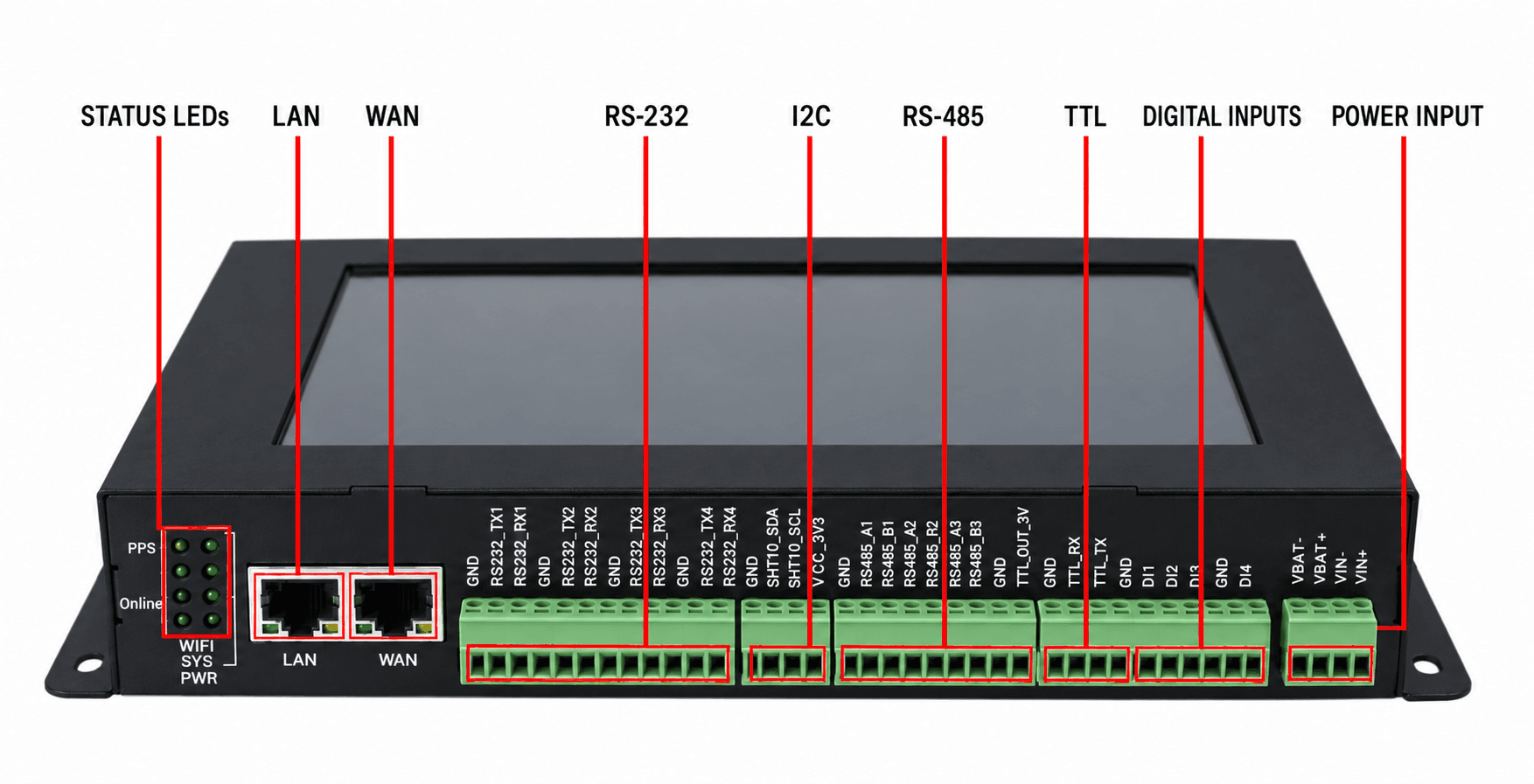

Field interfaces

RS-232, I2C, RS-485, TTL, DI, analog in, relay out

Storage

On-board flash plus USB and TF-card expansion

Positioning

Optional GPS

Management

Local/remote monitor, config, upgrade; up to 12 centers
