SiCore Dynamics

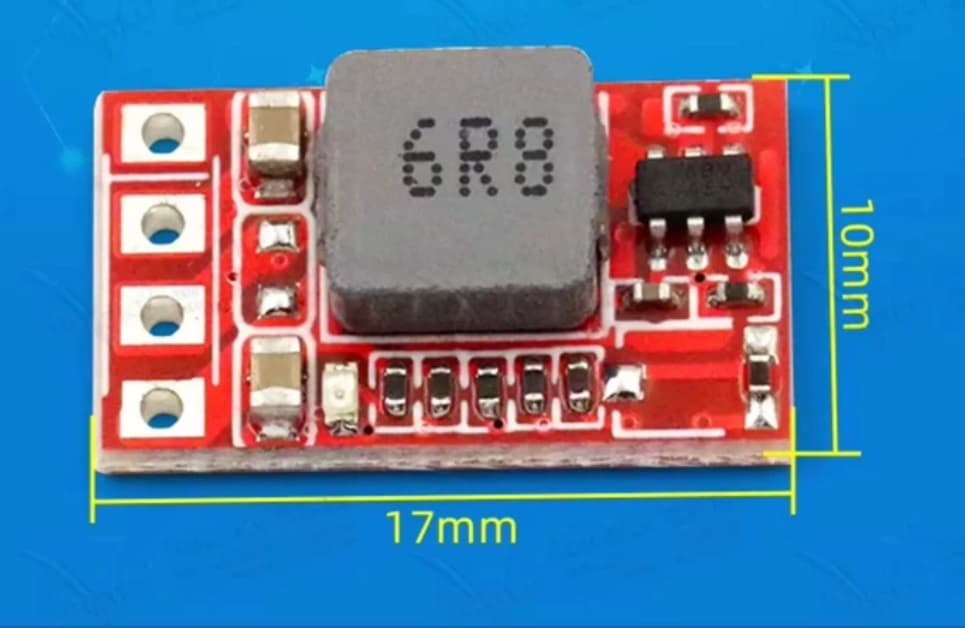

1.3 A Selectable-Output Buck Converter

Selectable 3.3 / 5 / 9 / 12 V, default 5 V

Selectable-output buck module. Input is 6–30 V DC and must stay above the selected output. Output options are 3.3 V, 5 V, 9 V, and 12 V, with 5 V as the default. Maximum current is 1.2 A and continuous current is 1 A or less. Efficiency is up to 93%.

Quote

Converter

Non-isolated selectable buck

Input voltage

6–30 V DC

Output voltage

3.3 / 5 / 9 / 12 V, default 5 V

Output current

1.2 A max; ≤1 A continuous

Efficiency

Up to 93%
