SiCore Dynamics

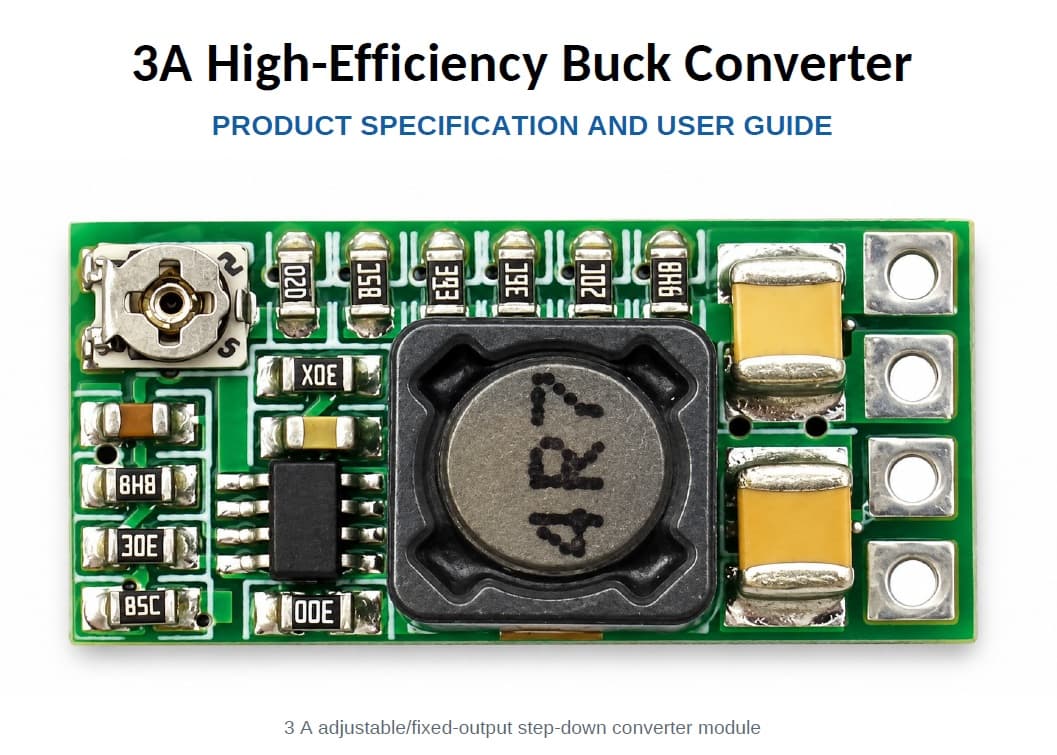

3 A High-Efficiency Adjustable Buck Converter

0.8–17 V adjustable, or fixed 1.8–12 V options

3 A buck module with adjustable and fixed outputs. Input is 4.5–24 V DC. The adjustable range is 0.8–17 V, and fixed options are 1.8 V, 2.5 V, 3.3 V, 5 V, 9 V, and 12 V. Maximum current is 3 A and efficiency is up to 97.5%. The board is 20 × 11 mm.

Quote

Converter

Non-isolated buck

Input voltage

4.5–24 V DC

Adjustable output

0.8–17 V

Fixed outputs

1.8 / 2.5 / 3.3 / 5 / 9 / 12 V

Output current

3 A maximum

Efficiency

Up to 97.5%

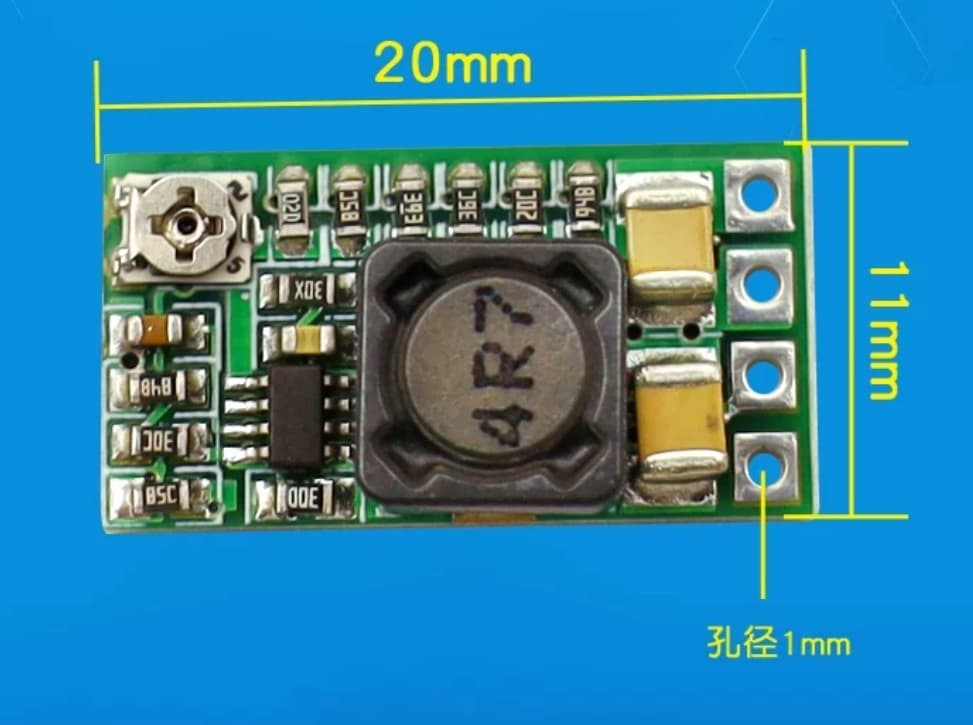

Board size

20 × 11 mm
