SiCore Dynamics

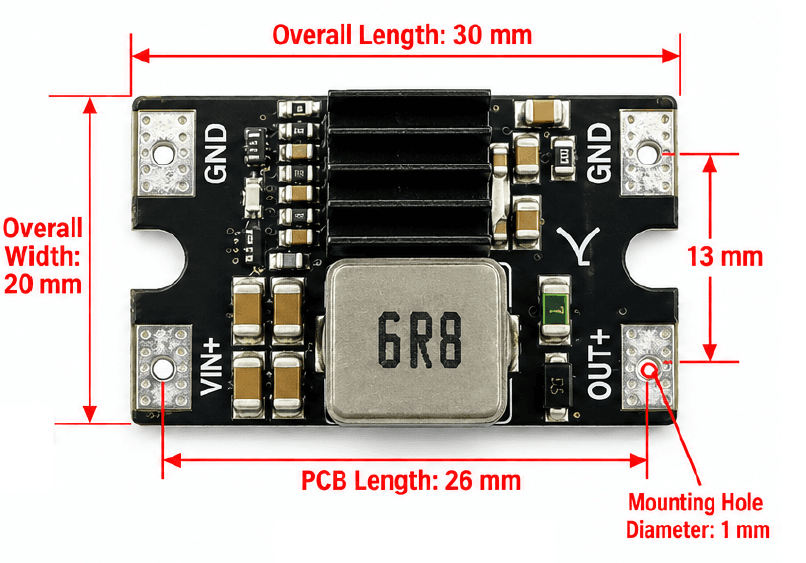

Mini 25 V 8 A 12 V Buck Converter

6–25 V input, fixed 12 V, 8 A maximum

Compact high-current buck module with a fixed 12 V output. Input is 6–25 V DC, and the input must be at least 1 V above 12 V. The 8 A figure is the maximum rating, not an unconditional continuous current. Input, short-circuit, and thermal protection are integrated.

Quote

Converter

Non-isolated buck

Input voltage

6–25 V DC

Output voltage

12 V fixed

Output current

8 A maximum

Headroom

VIN at least 1 V above the output

Protection

Input, short-circuit, thermal
