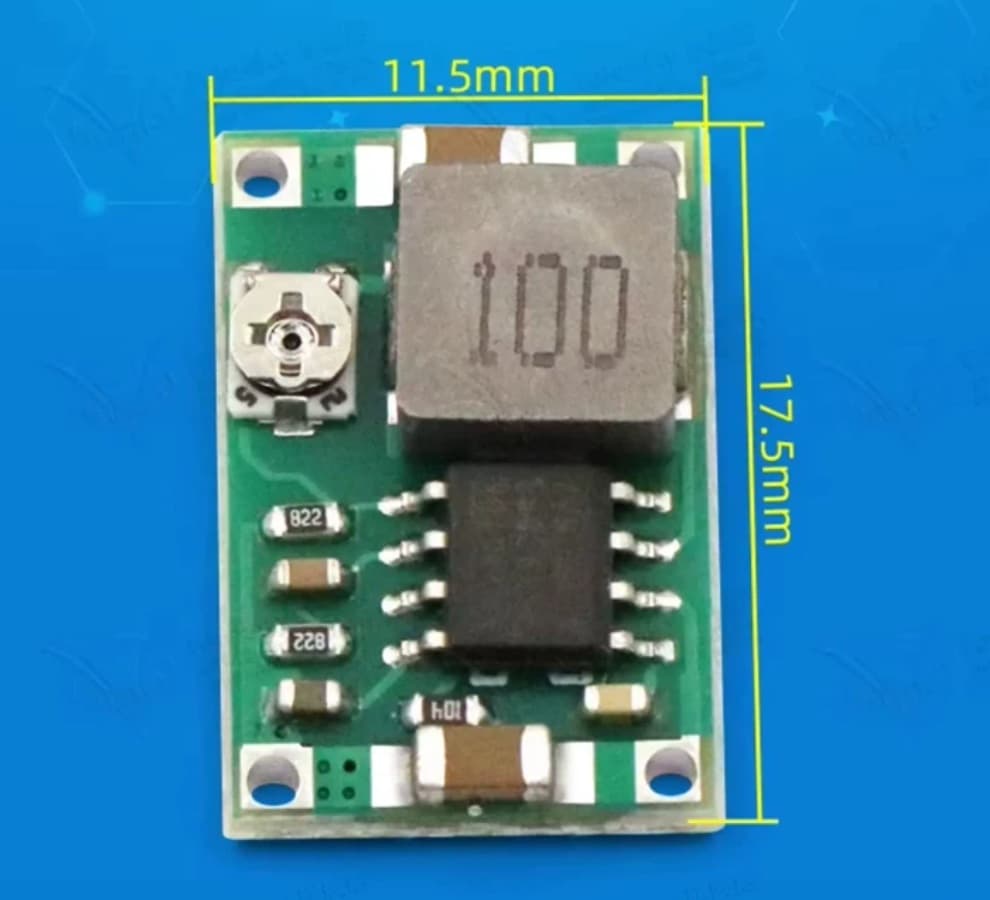

MP1484EN Adjustable Buck Converter

1.0–17 V adjustable output, 3 A peak

MP1484EN adjustable buck module. Input is 4.75–23 V DC and the output is set from 1.0–17 V before the load is connected. Peak current is 3 A, long-term current is 1.8 A or less, switching frequency is 340 kHz, and efficiency is up to 96%.

Quote

Converter

Non-isolated buck, MP1484EN

Input voltage

4.75–23 V DC

Output voltage

1.0–17 V adjustable

Output current

3 A peak; ≤1.8 A long-term

Switching frequency

340 kHz

Efficiency

Up to 96%

Board size

About 22 × 17 mm
