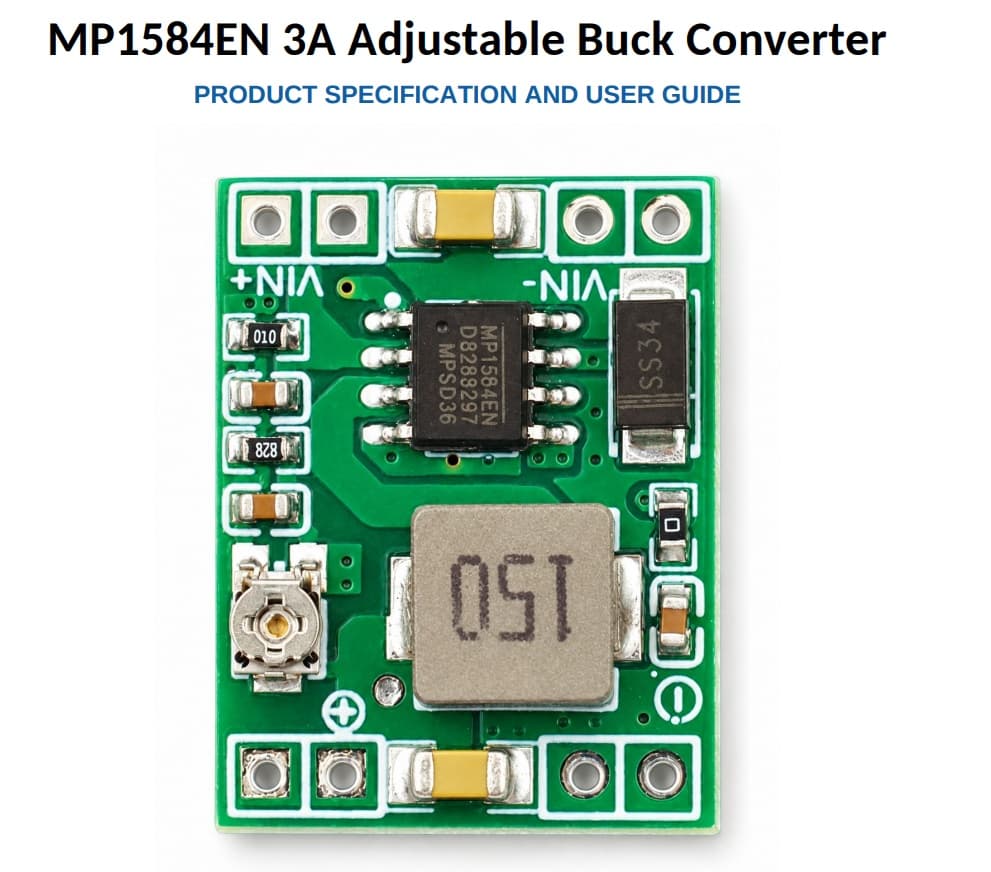

MP1584EN 3 A Adjustable Buck Converter

0.8–20 V adjustable from a 4.5–28 V input

MP1584EN adjustable buck module. Input is 4.5–28 V DC and the output is adjustable from 0.8–20 V. Maximum current is 3 A, efficiency is up to 92%, switching frequency is 1 MHz, and the board is about 22 × 16 mm.

Quote

Converter

Non-isolated buck, MP1584EN

Input voltage

4.5–28 V DC

Output voltage

0.8–20 V adjustable

Output current

3 A maximum

Efficiency

Up to 92%

Switching frequency

1 MHz

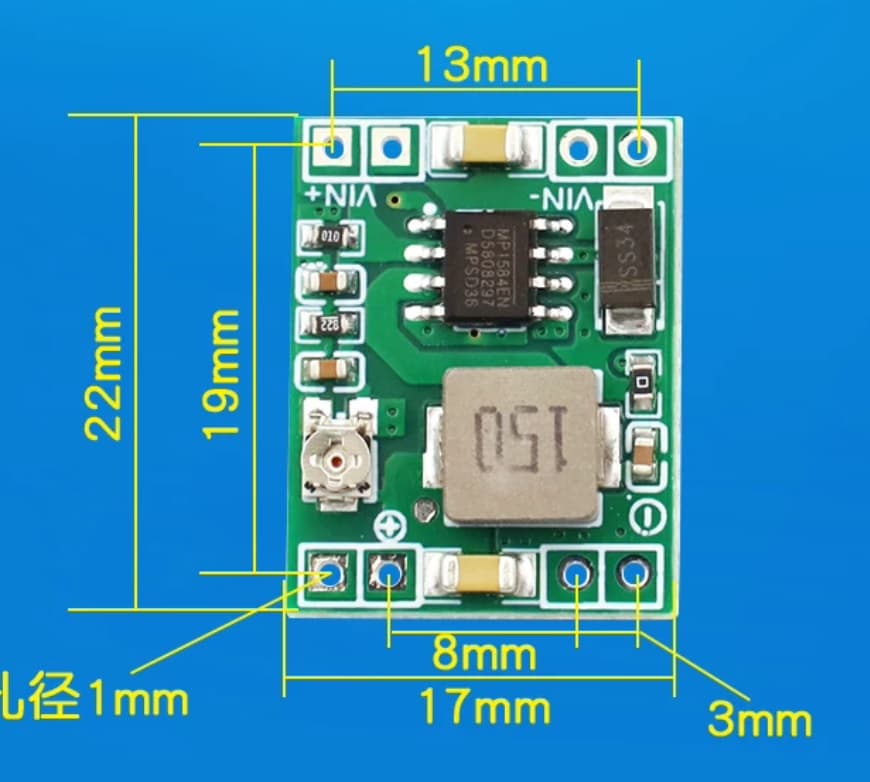

Board size

About 22 × 16 mm
