SiCore Dynamics

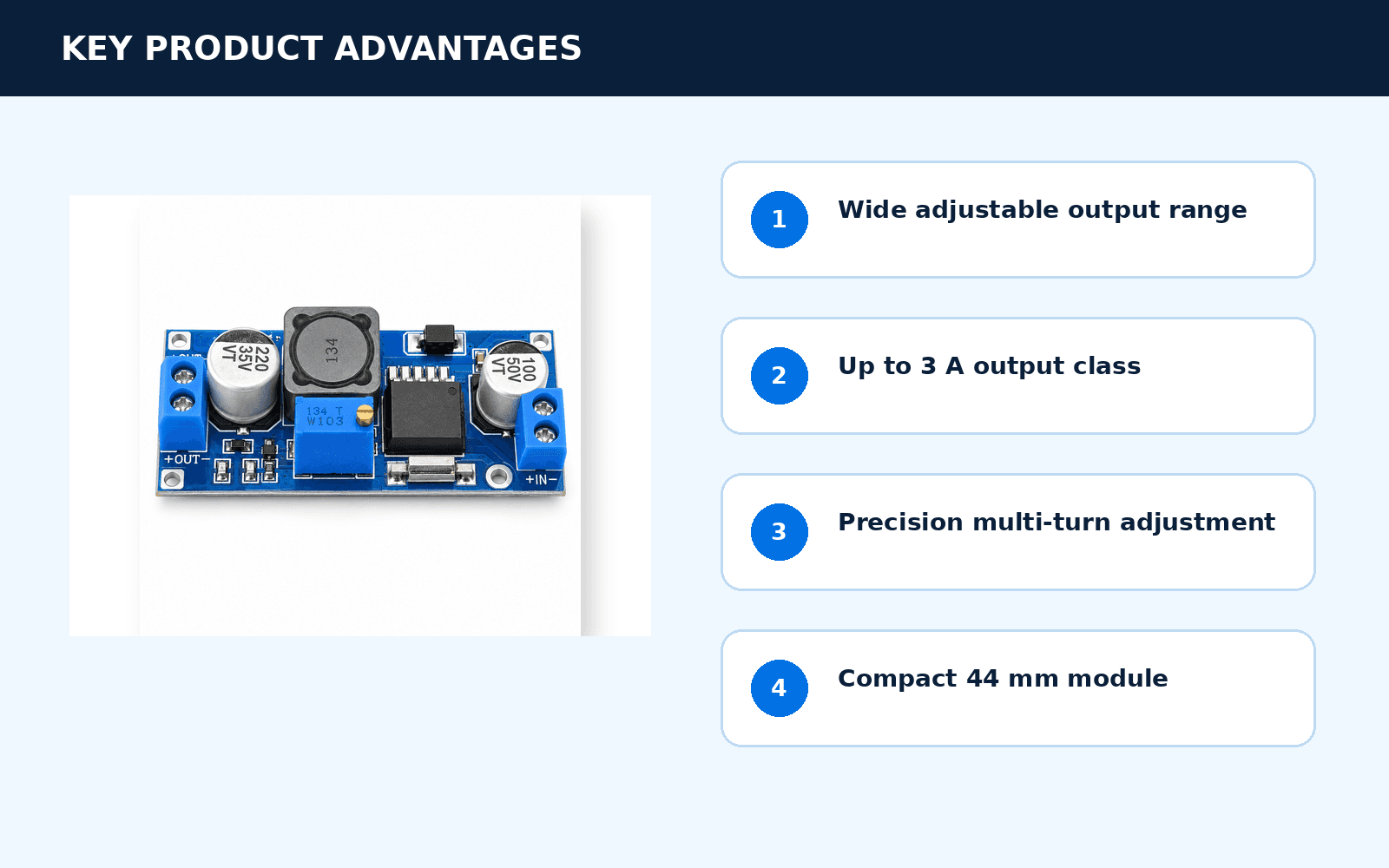

LM2596S-ADJ Adjustable Buck Converter Module

3 A DC-DC step-down regulator with screw terminals

A compact power-electronics module documented from the supplied archived product page. The specifications below separate confirmed ratings from operating guidance and identify the exact module variant where the source page contains multiple options.

Quote

Topology

Non-isolated DC-DC buck converter

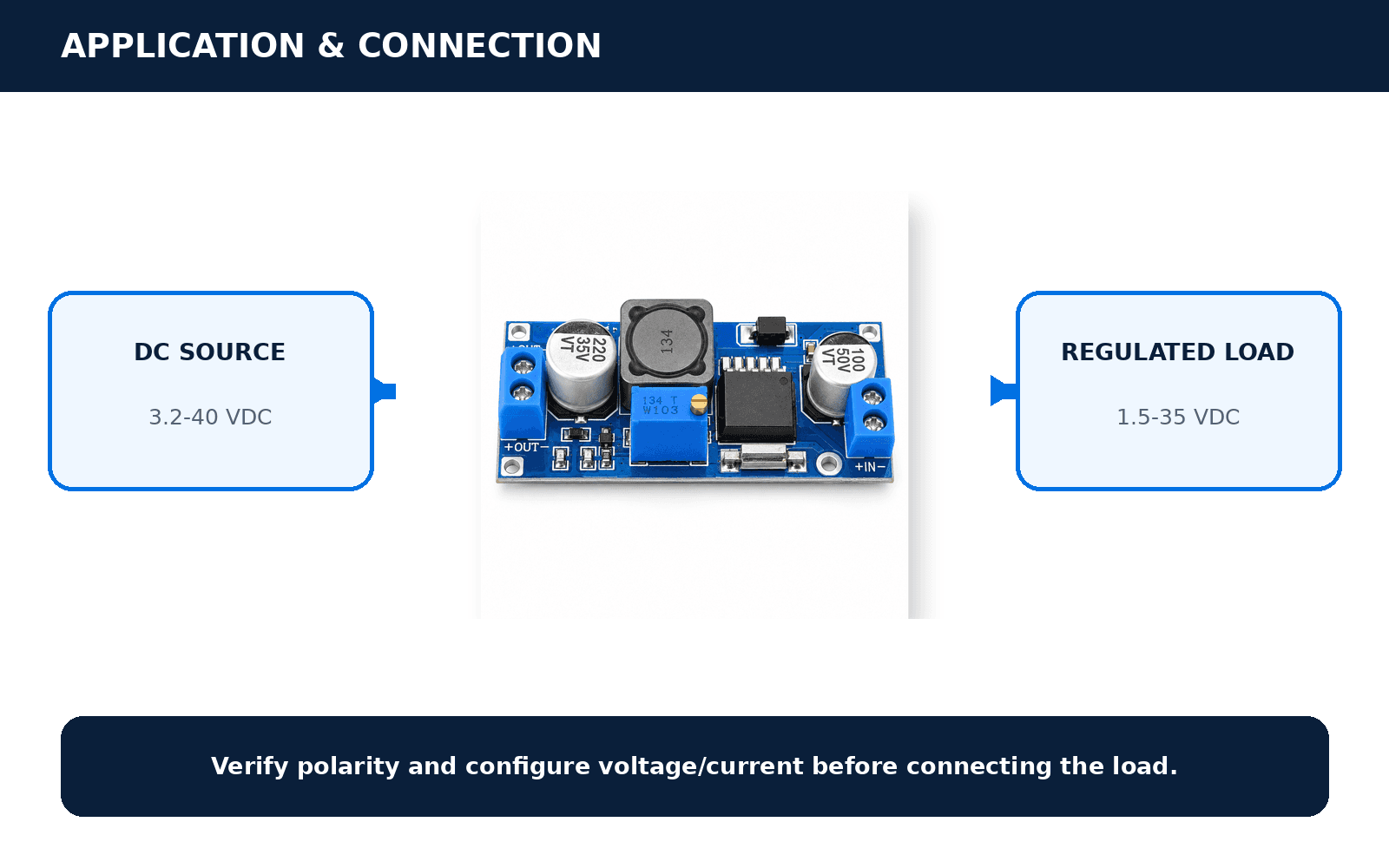

Input voltage

3.2-40 VDC

Adjustable output

1.5-35 VDC

Maximum output current

3 A

Switching frequency

65 kHz stated on the saved page

Output ripple

Less than 30 mV
