LinkTrack AOA UWB Positioning System

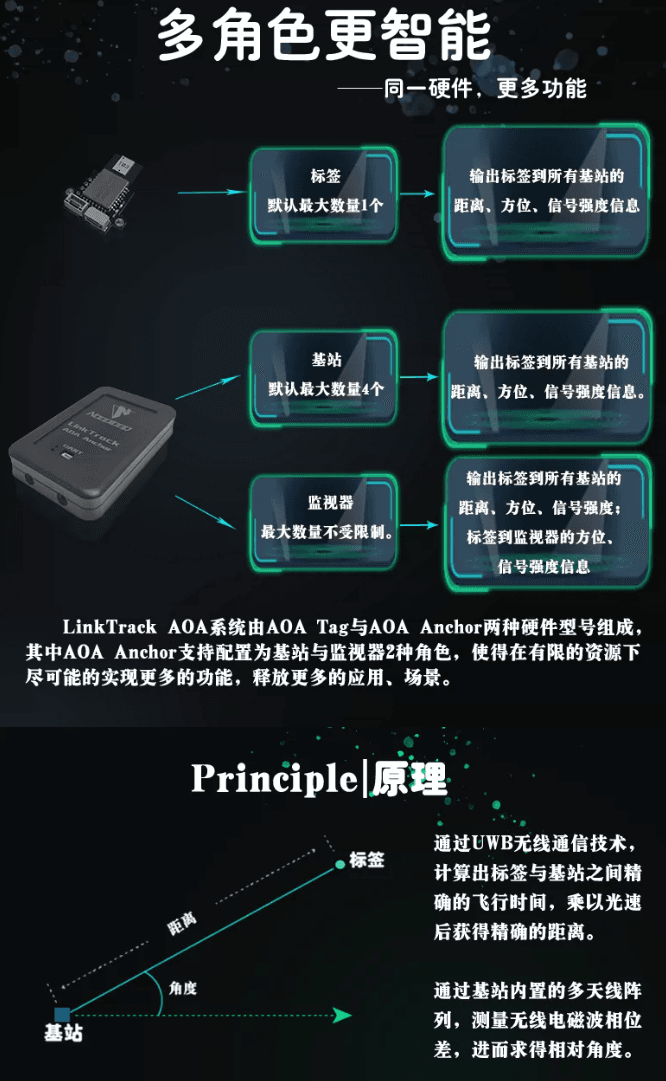

UWB ranging, angle-of-arrival, and bidirectional wireless data in one system.

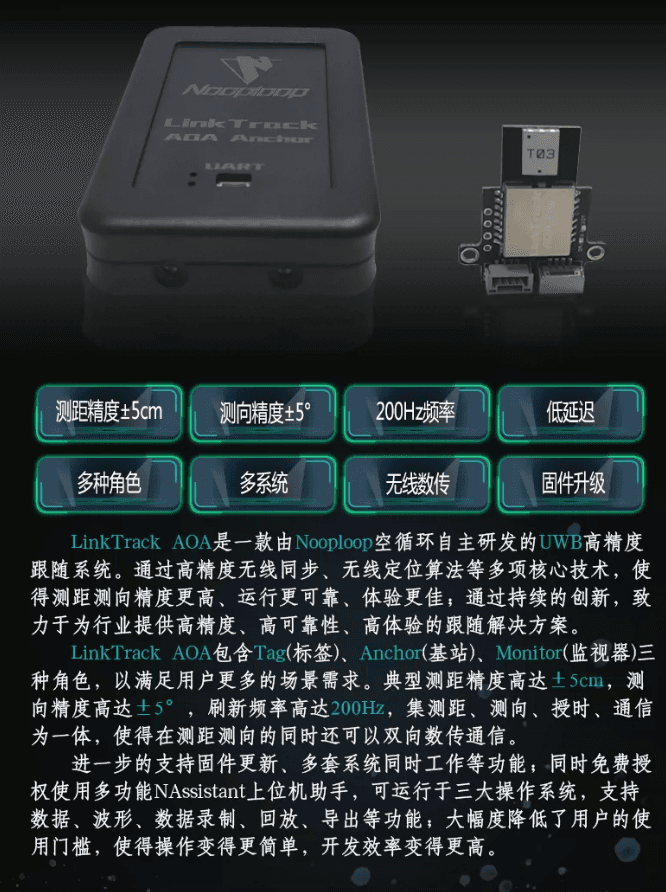

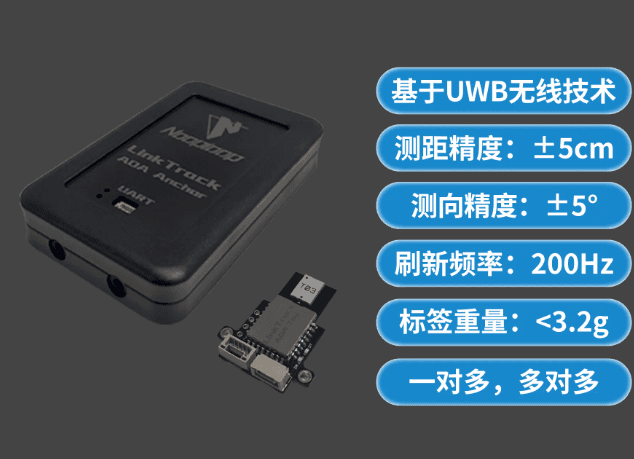

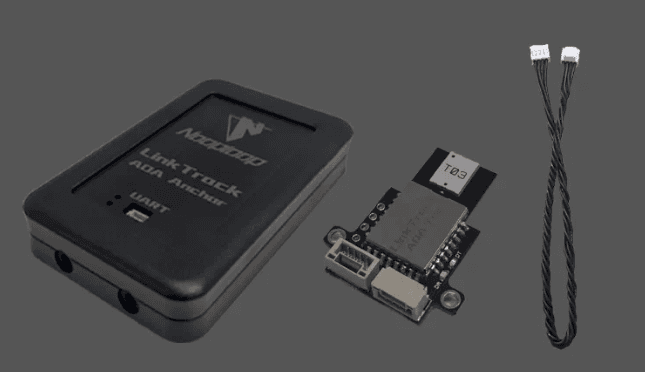

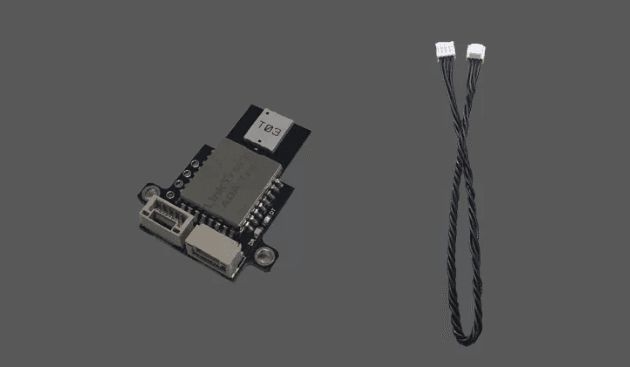

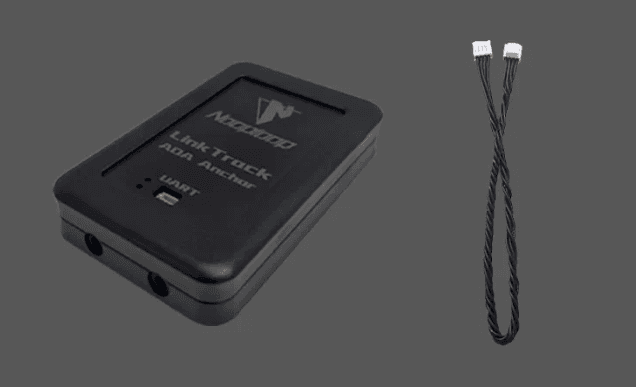

LinkTrack AOA pairs a compact tag with an anchor for relative distance and direction. Repeat accuracy is ±5 cm and ±5°, communication reaches 120 m, and the host interface is UART.

Quote

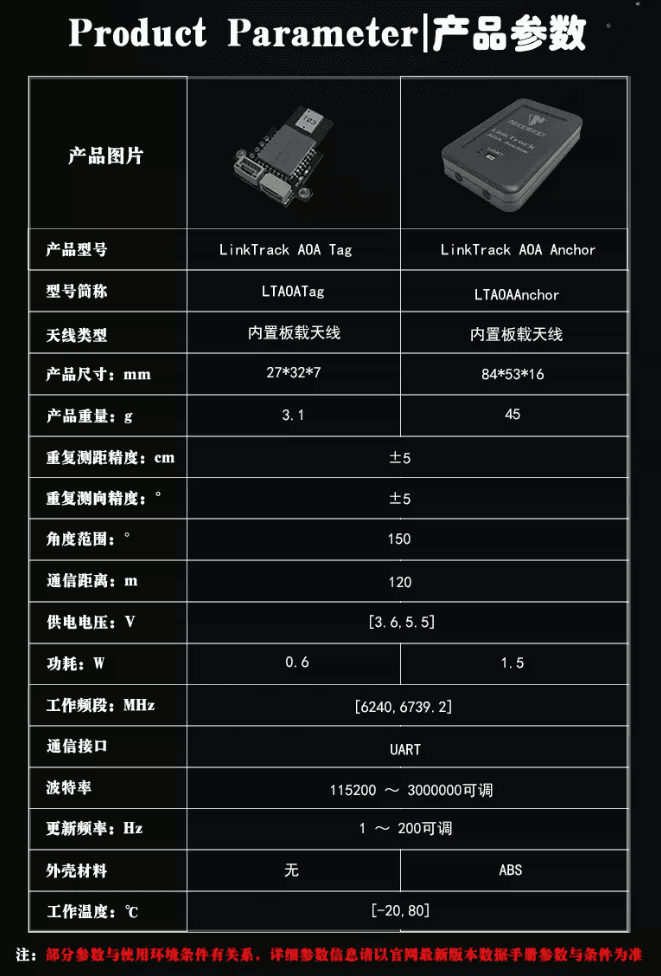

Ranging accuracy

±5 cm repeat

Direction accuracy

±5°

Angular range

150°

Communication distance

120 m

Update rate

1–200 Hz

Interface

UART
