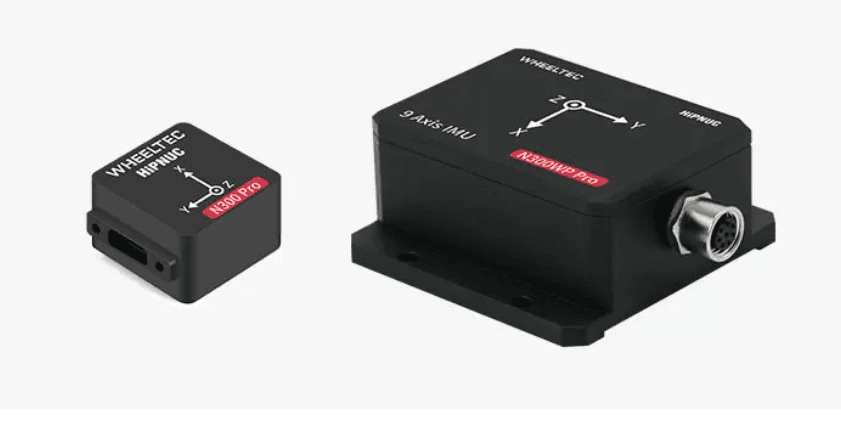

N300 Pro / N300WP Pro 9-Axis IMU

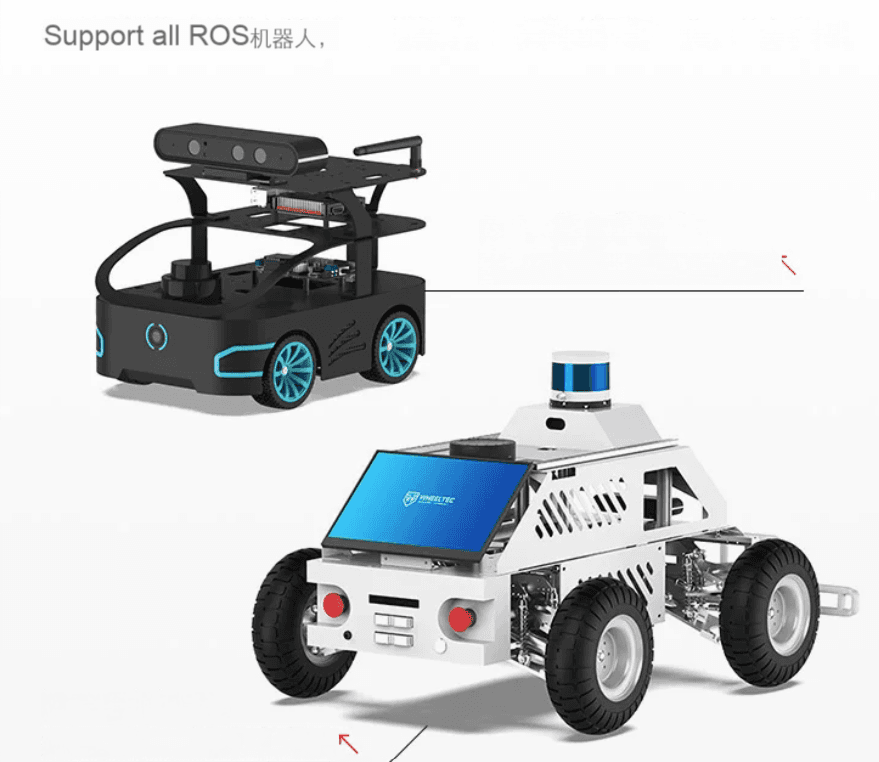

High-rate MEMS attitude sensor for robotics, UAVs, and industrial motion.

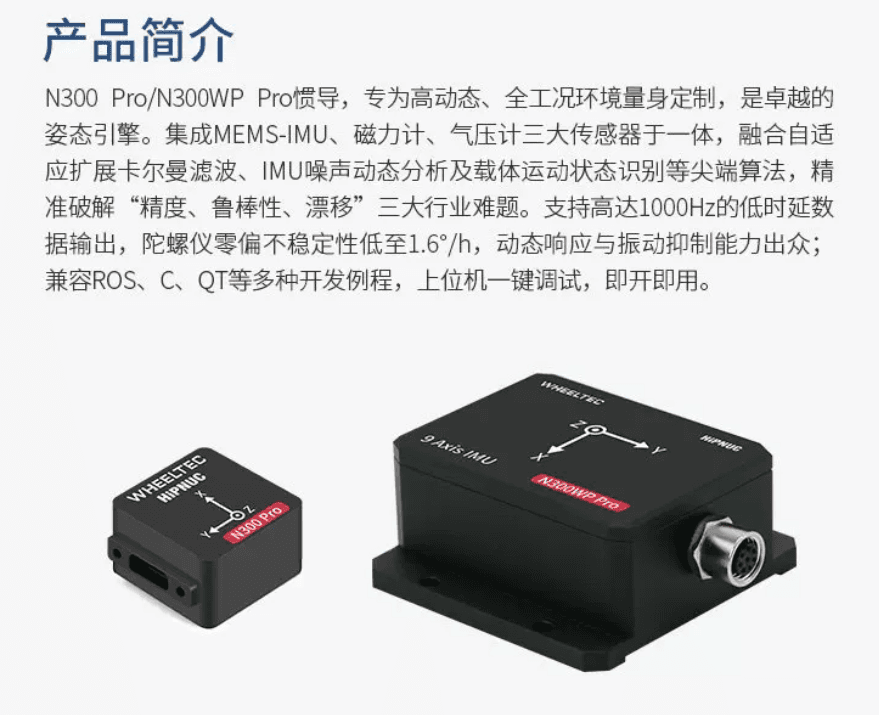

The N300 Pro family combines a 3-axis accelerometer, gyroscope, and magnetometer, with a barometer on the N300 Pro. Output reaches 1000 Hz. The compact N300 Pro uses Type-C; the waterproof N300WP Pro adds TTL, CAN, and RS485.

Quote

Output rate

Up to 1000 Hz

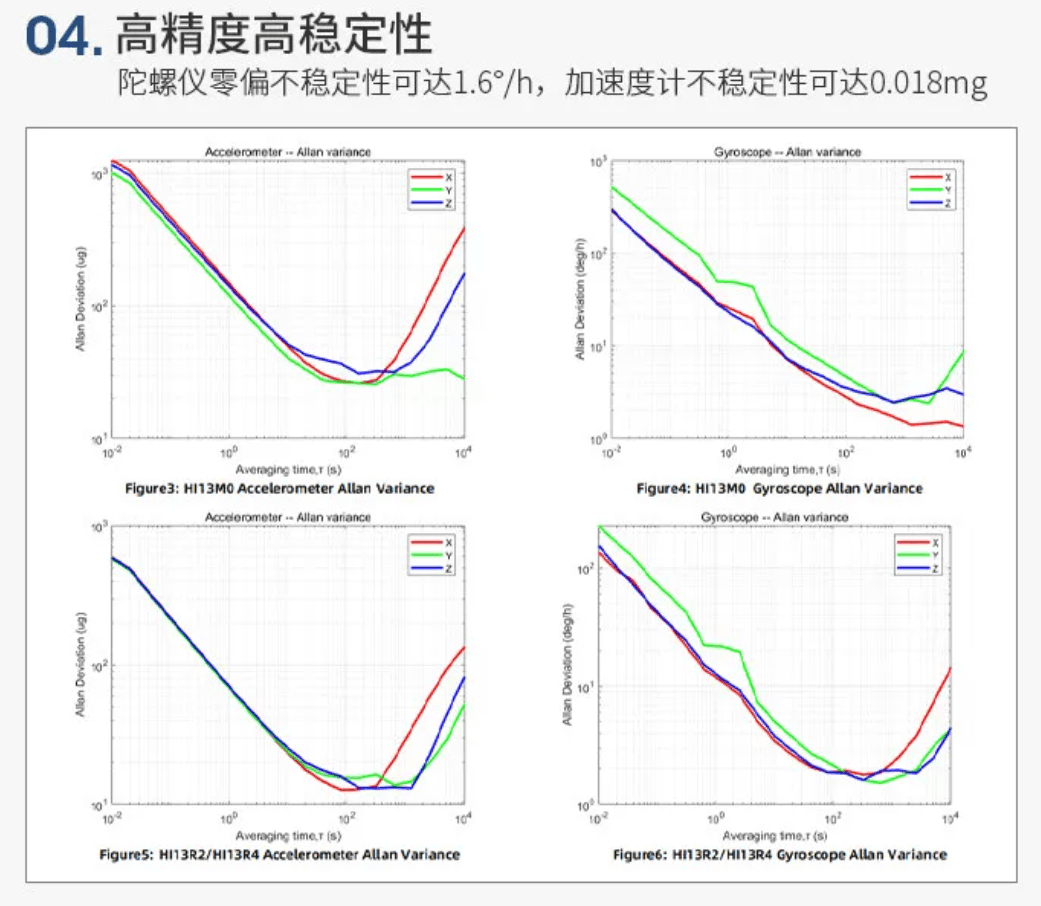

Gyro bias instability

As low as 1.6°/h

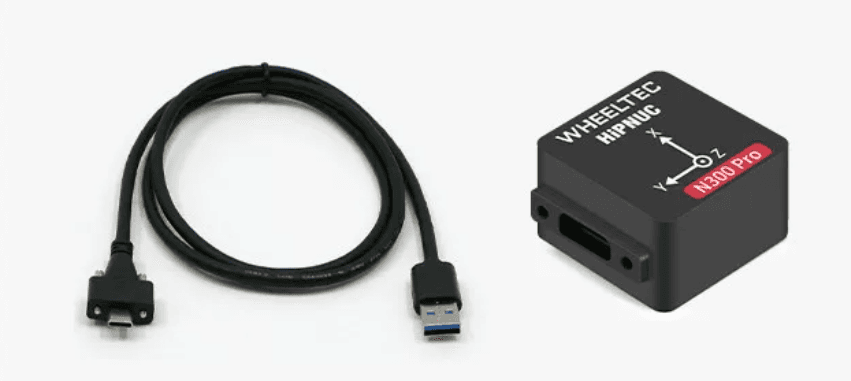

N300 Pro interface

Type-C

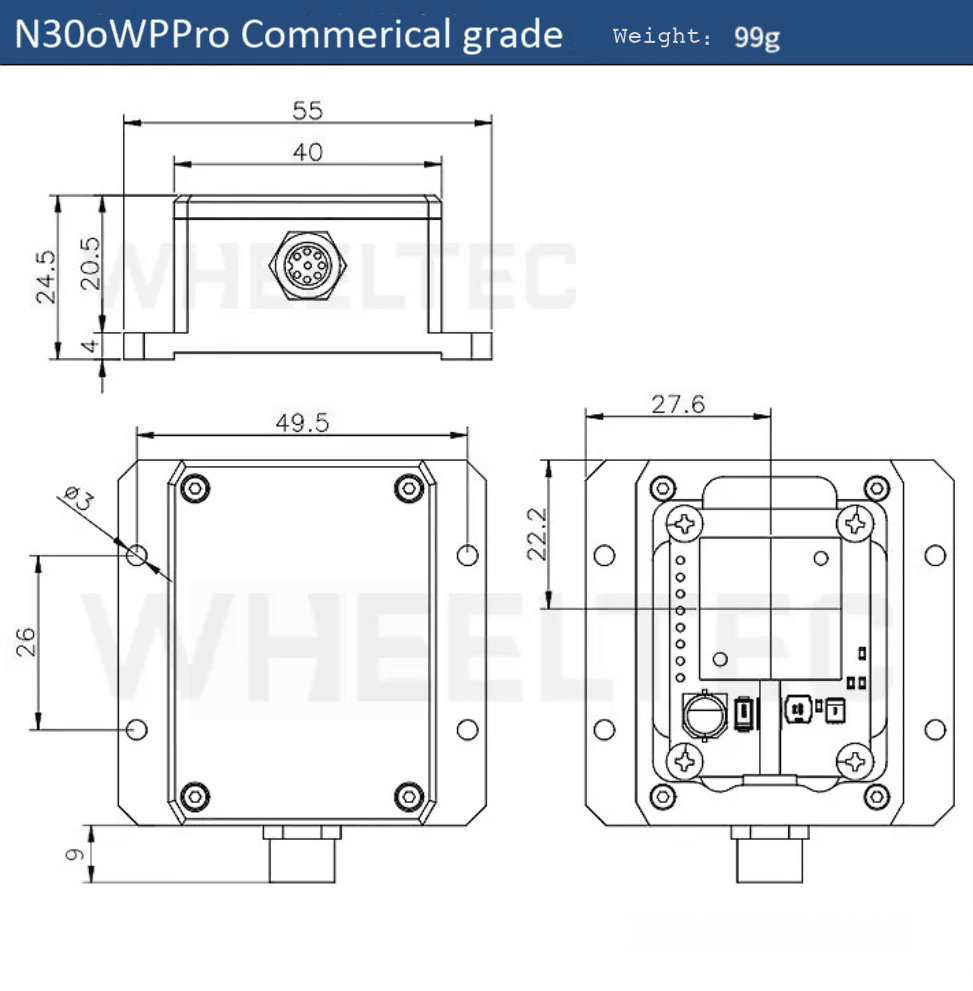

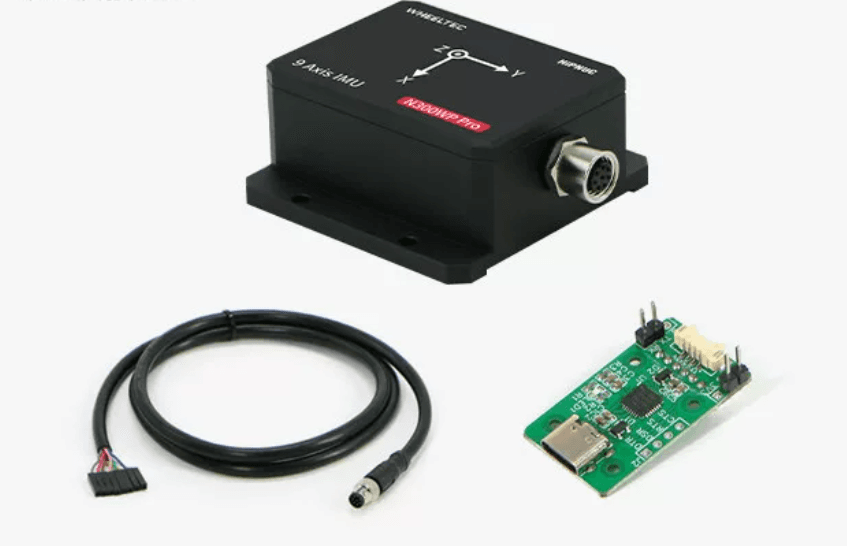

N300WP Pro interface

TTL, CAN, RS485

Supply

3.3–5 V DC

Operating temperature

−40°C to +85°C
