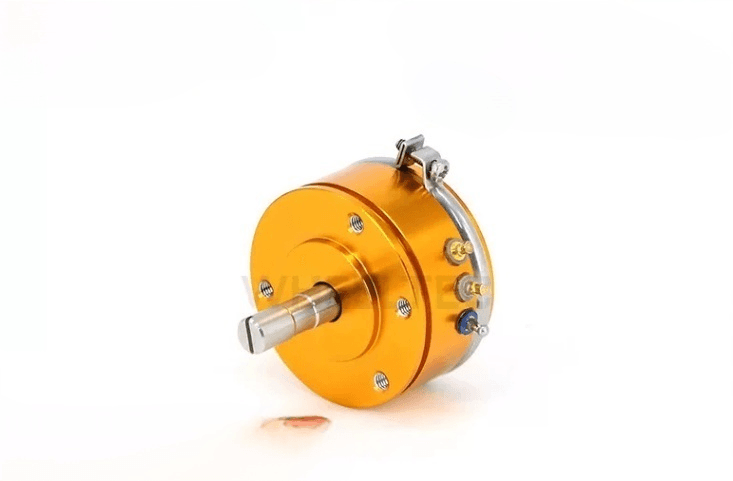

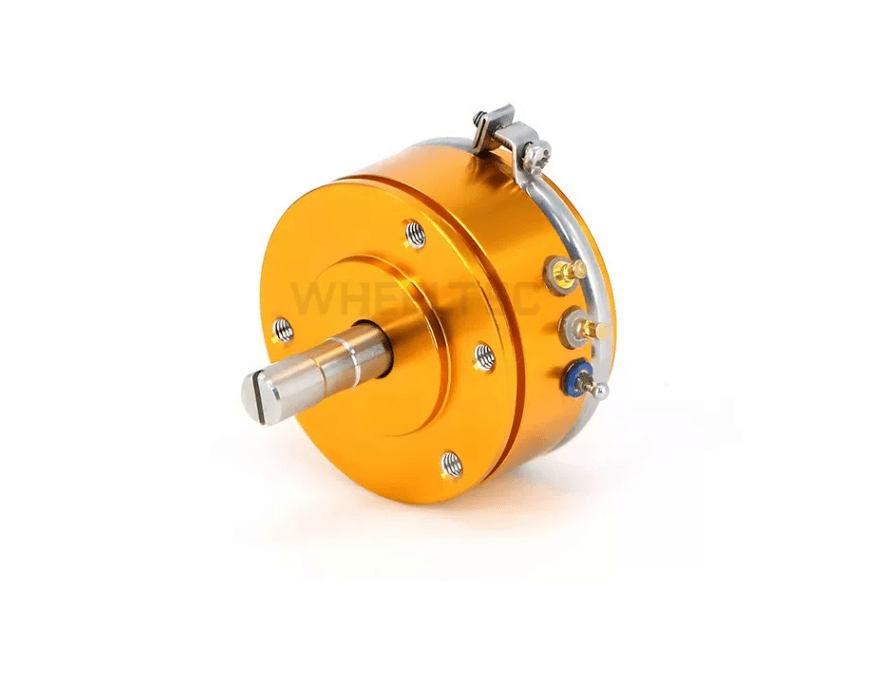

WDD35D4 Absolute Angular Displacement Sensor

Precision potentiometric rotary-position sensor with continuous analog output.

The WDD35D4 converts shaft angle into a continuous analog signal. It offers 360° mechanical rotation, 345° electrical travel, ±0.1% linearity, and a 20 million revolution mechanical life.

Quote

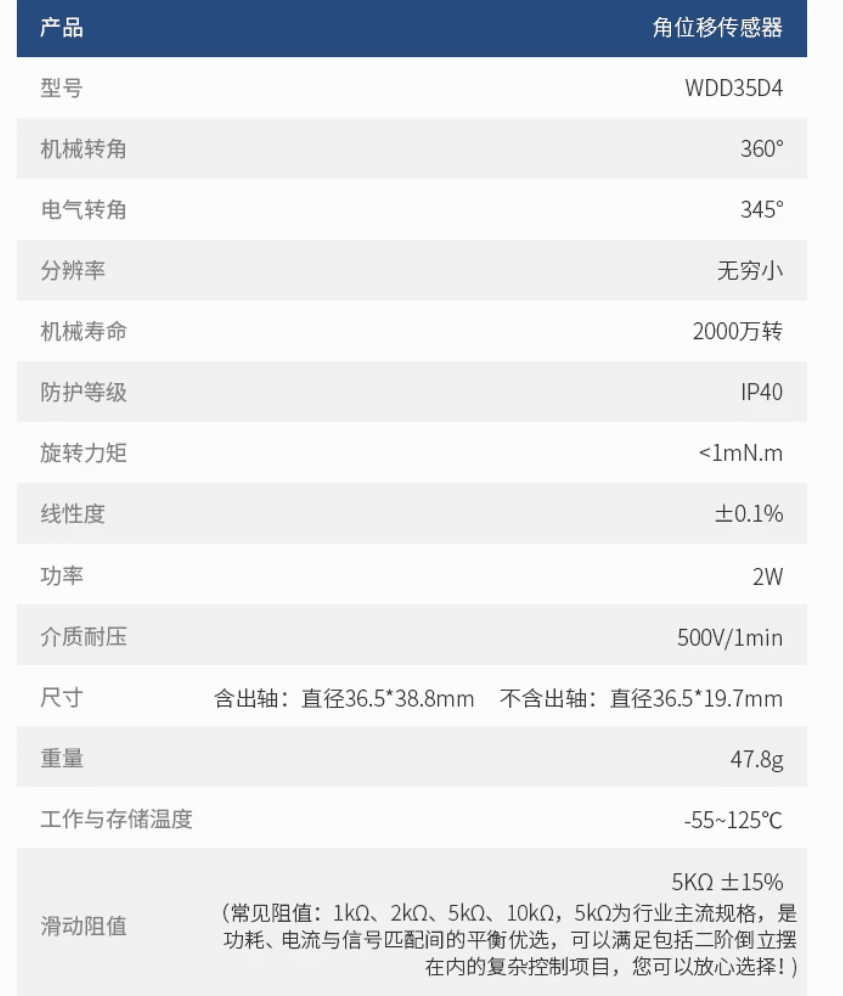

Mechanical rotation

360°

Electrical rotation

345°

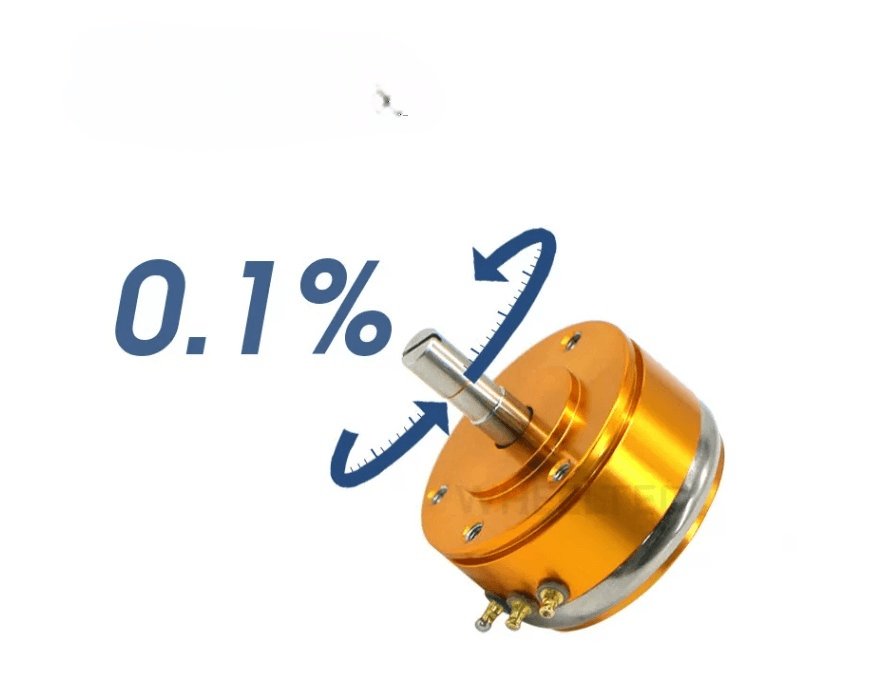

Linearity

±0.1%

Resolution

Continuous

Mechanical life

20,000,000 revolutions

Protection

IP40
