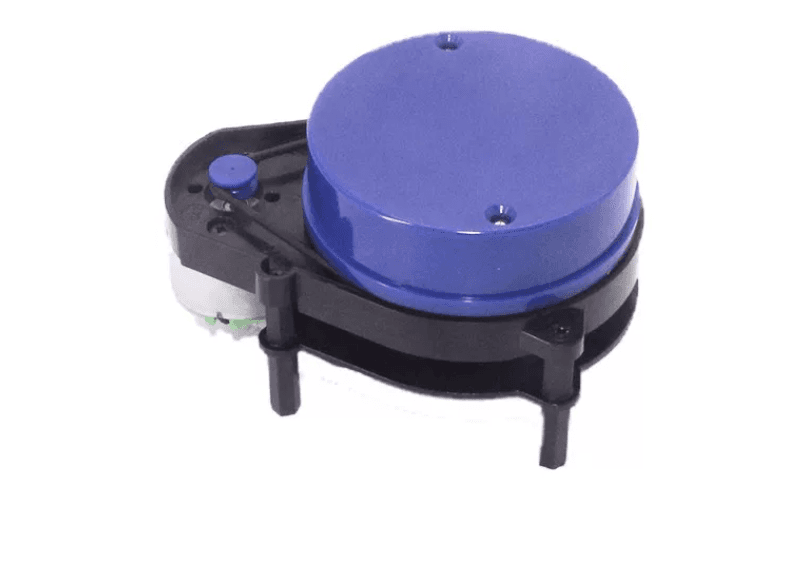

YDLIDAR X4 Pro 360° 2D LiDAR

Compact 10 m scanning LiDAR for navigation, mapping, and obstacle avoidance.

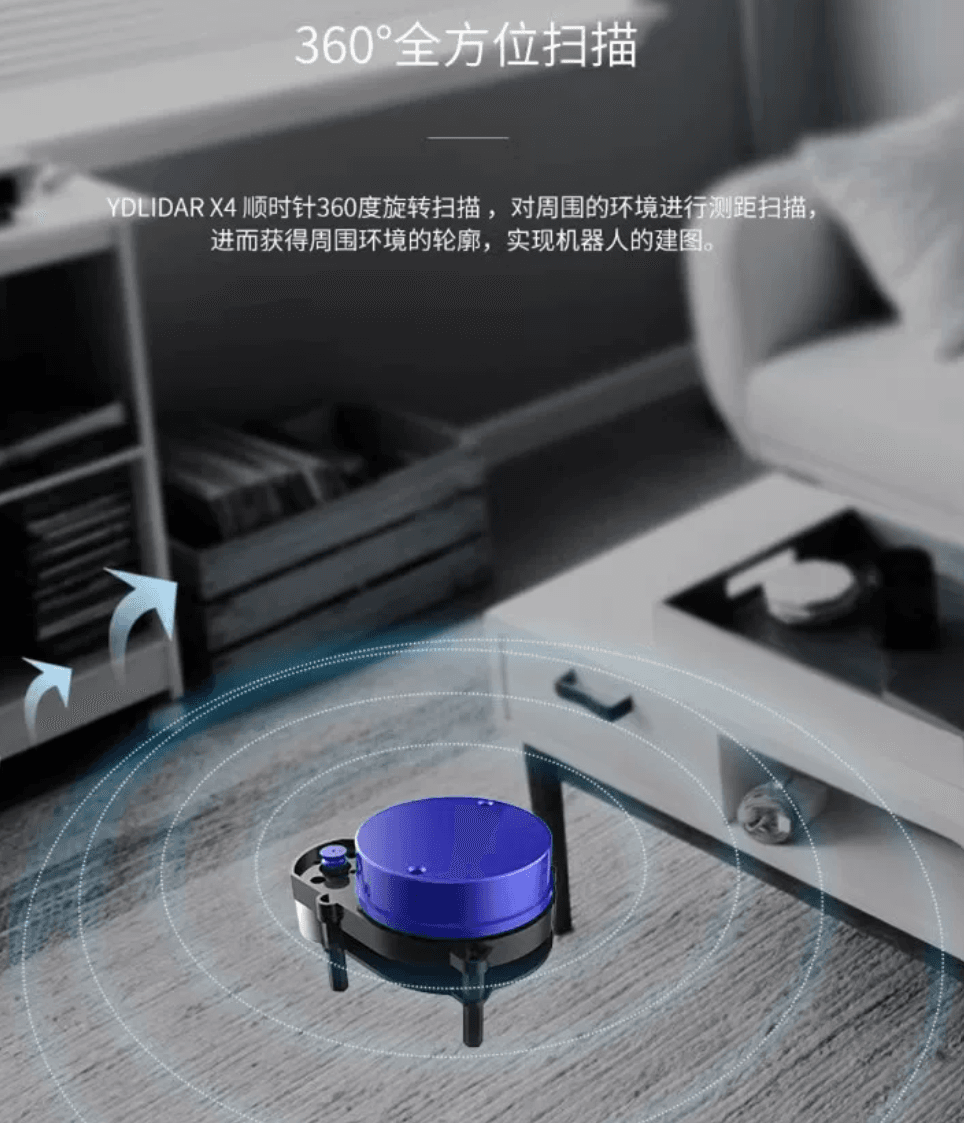

The X4 Pro scans a full 360° at 5000 Hz ranging frequency. Measurement radius is 0.12–10 m at 80% reflectivity, with a scan rate of 6–12 Hz.

Quote

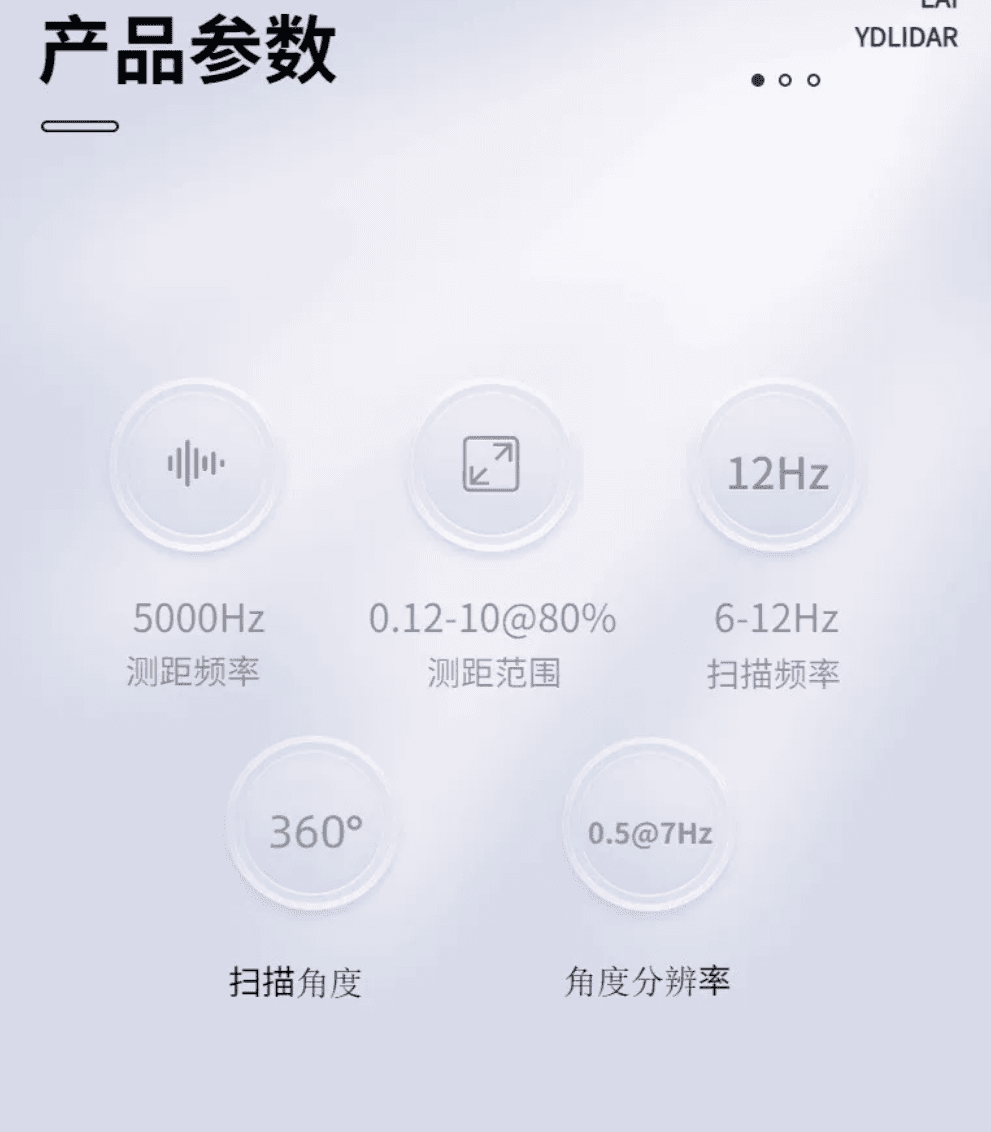

Scan angle

360°

Range

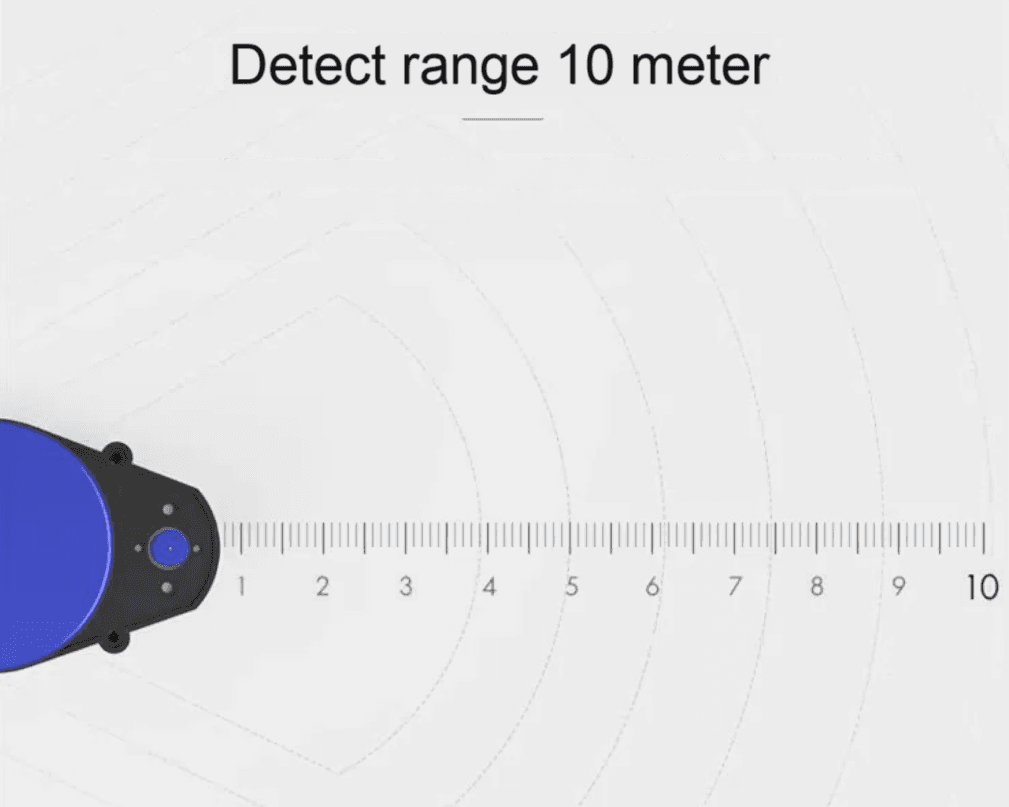

0.12–10 m at 80% reflectivity

Ranging frequency

5000 Hz

Scan frequency

6–12 Hz

Angular resolution

0.5° at 7 Hz
